Kubernetes Dashboard is a general purpose, web-based UI for Kubernetes clusters. It allows users to manage applications running in the cluster and troubleshoot them, as well as manage the cluster itself. So, if you want to get certified in Kubernetes, and master this tool, you can uplift your career as a DevOps Engineer with the Kubernetes Certification.
So before moving on let us see what are the topics, we will be covering in this blog:
- What is Kubernetes Dashboard?
- Installing the Kubernetes Dashboard
- Views of the Kubernetes Dashboard UI
What is Kubernetes Dashboard?
A Kubernetes dashboard is a web-based Kubernetes user interface which is used to deploy containerized applications to a Kubernetes cluster, troubleshoot the applications, and manage the cluster itself along with its attendant resources.
Uses of Kubernetes Dashboard
- To get an overview of applications running on your cluster.
- To create or modify the individual Kubernetes resources for example Deployments, Jobs, etc.
- It provides the information on the state of Kubernetes resources in your cluster, and on any errors that may have occurred.
Installing the Kubernetes Dashboard
How to Deploy Kubernetes Dashboard?
Run the following command to deploy the dashboard:
kubectl create -f https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml
Accessing Dashboard using the kubectl
kubectl proxyIt will proxy server between your machine and Kubernetes API server.
Now, to view the dashboard in the browser, navigate to the following address in the browser of your Master VM:
http://localhost:8001/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy/
You will then be prompted with this page, to enter the credentials:
Create a Cluster Admin service account
In this step, we will create the service account for the dashboard and get its credentials.
Note: Run all these commands in a new terminal, otherwise your kubectl proxy command will stop.
Run the following commands:
This command will create a service account for a dashboard in the default namespace
kubectl create serviceaccount dashboard -n defaultAdd the cluster binding rules to your dashboard account

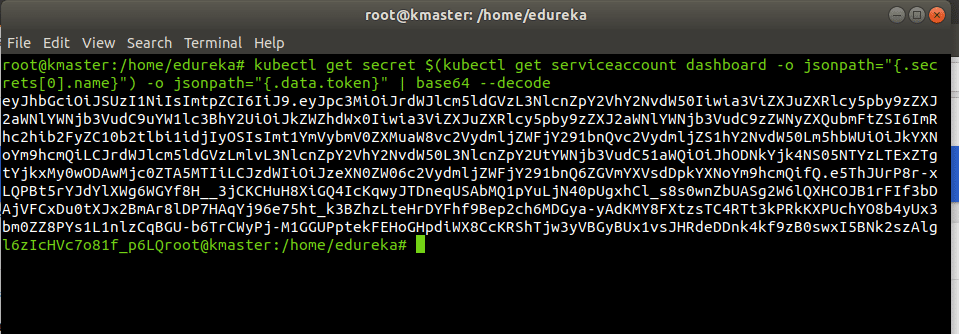

kubectl create clusterrolebinding dashboard-admin -n default --clusterrole=cluster-admin --serviceaccount=default:dashboardCopy the secret token required for your dashboard login using the below command:
kubectl get secret $(kubectl get serviceaccount dashboard -o jsonpath="{.secrets[0].name}") -o jsonpath="{.data.token}" | base64 --decode

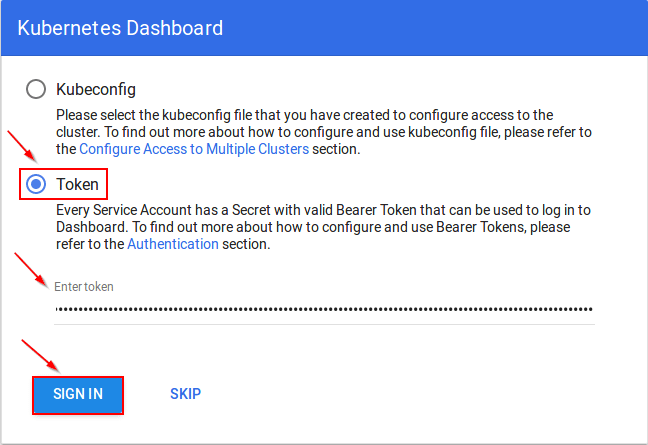

Copy the secret token and paste it in Dashboard Login Page, by selecting a token option

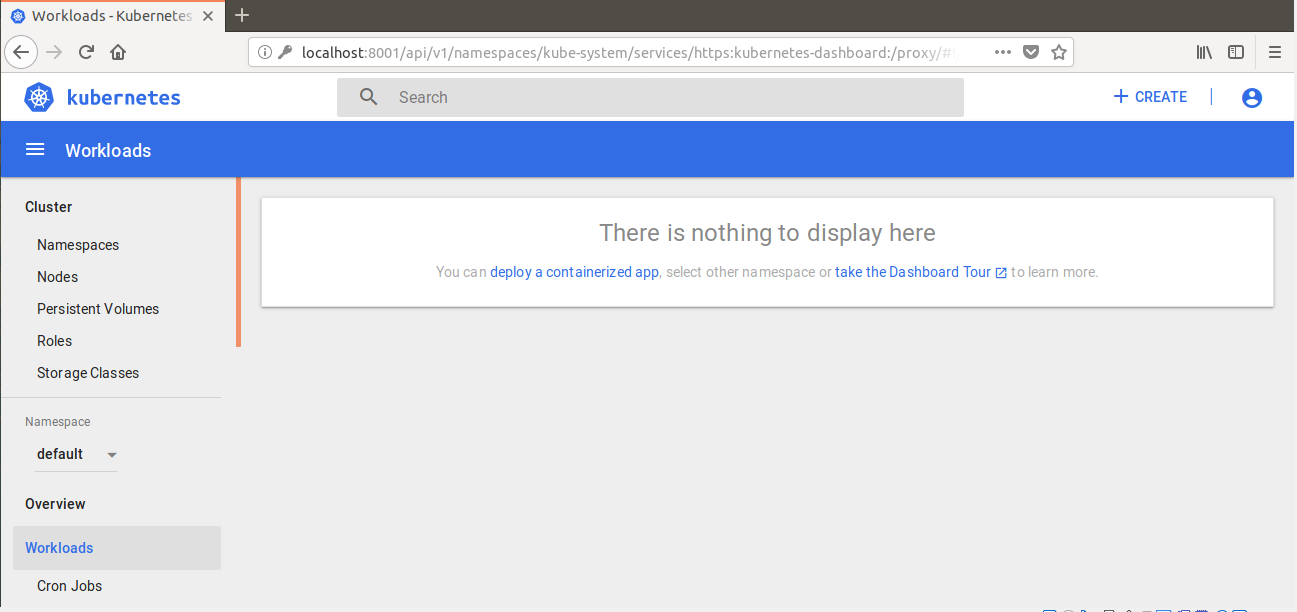

After Sign In you will land to Kubernetes Homepage.
Home Page
You’ll see the home/welcome page in which you can view which system applications are running by default in the kube-system namespace of your cluster, for example, the Dashboard itself.
Views of the Kubernetes Dashboard UI
Kubernetes Dashboard consists of following dashboard views:
- Admin View
- Workloads View
- Services View
- Storage and Config View
Let’s start with the admin view.
Admin View
It lists Nodes, Namespaces, and Persistent Volumes which has a detailed view of them, where node list view contains CPU and memory usage metrics aggregated across all Nodes and the details view shows the metrics for a Node, its specification, status, allocated resources, events, and pods running on the node.
Workloads View
It is the entry point view that shows all applications running in the selected namespace. It summarizes the actionable information about the workloads, for example, the number of ready pods for a Replica Set or current memory usage for a Pod.
Services View
It shows the shows Kubernetes resources that allow for exposing services to the external world and discovering them within a cluster.
Storage and Config View
The Storage view shows Persistent Volume Claim resources which are used by applications for storing data whereas config view is used to shows all the Kubernetes resources that are used for live configuration of applications running in clusters.
