On day one, no one you know is sick. It feels like a normal day. But then one day, a few people you know are sick and suddenly, you see everyone is sick and it will feel like it happened so instantly. Everything looks fine until it isn’t. This is the paradox of pandemics. In this article, we shall analyse the outbreak of COVID-19 using Machine Learning.
Following is the outline of all you’re going to learn today:
- What is COVID-19?
- How does a Pandemic Work?
- Case Study: Analysing the Outbreak of COVID-19 using Machine Learning
- Conclusion
What is COVID-19?
The Problem
Corona Virus disease (COVID-19) is an infectious disease caused by a newly discovered virus, which emerged in Wuhan, China in December of 2019.
The COVID-19 virus spreads primarily through droplets of saliva or discharge from the nose when an infected person coughs or sneezes, so you might have heard caution to practice respiratory etiquette (for example, by coughing into a flexed elbow).
How does a Pandemic Work?
To understand this better let’s look a small riddle.
There’s a glass slide held under a microscope which consists of a specific germ. This germ has a property to double every day. So on the first day, there’s one, on the second day there are two, on the third day there four and the fourth day eight, and so on.
Day 59. But of course, you knew that.
Surprisingly, not until the 54th day!

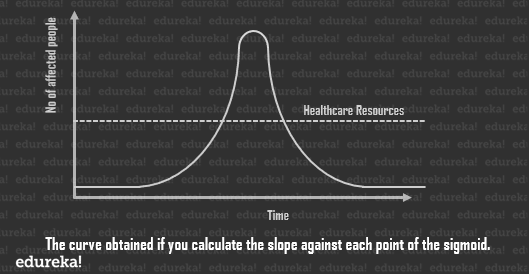

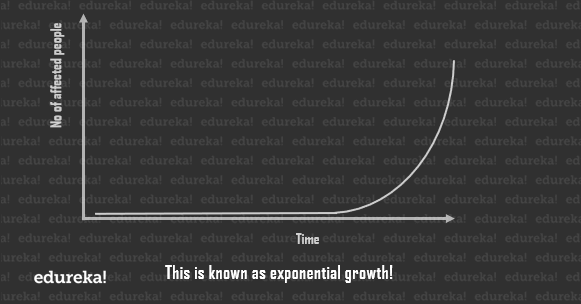

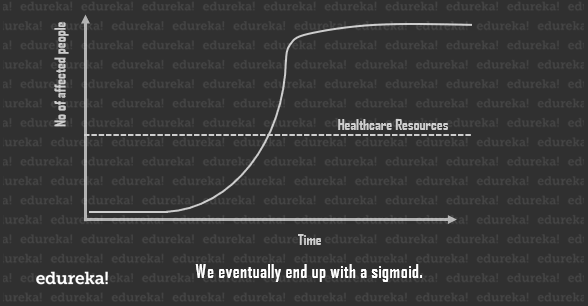

What it means that the slide goes from being 1% full to 100% in less than a week and hence, displays a property called exponential growth. And this is also how a Pandemic works. The outbreak is fairly unnoticeable in the beginning, then, once it reaches a significant value, the growth to maxima is extremely quick.

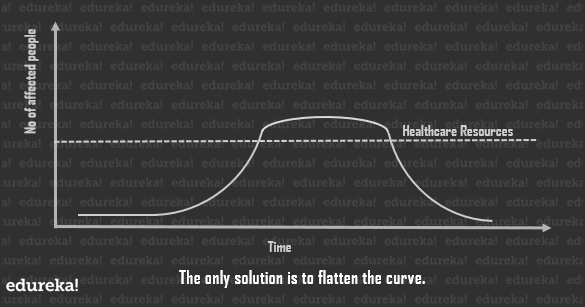

Since we can’t really help the total number of individuals affected by the pandemic, the best solution is to flatten the curve so as to bring down the total number of cases, at any given point in time, as close to the healthcare line as possible.
The Solution
Social Distancing. The logic here is, the virus can’t infect bodies if it cannot find bodies to infect!
World Leaders in all affected countries announced quarantines and lock-downs to keep their folks safe and away from anything or anyone that could infect them, all big social events were postponed and all major sports leagues cancelled as well.
On March 24, the Indian Prime Minister announced that the country would go under a lock-down to combat the spread of the virus, until further notice. Infections are rapidly rising in Italy, France, Germany, Spain, the United Kingdom and the United States. It has has a massive impact on the global economy and stock markets
The outbreak of COVID-19 is developing into a major international crisis, and it’s starting to influence important aspects of daily life.
For example:
- Travel: Complete lock-down no domestic or international flights are allowed in India until decided by Ministry of Civil Aviation.
- Grocery stores: In highly affected areas, people are starting to stock up on essential goods leading to a shortage of essentials.
You can also take a look at the following tutorial on “COVID 19 Outbreak Prediction using Machine Learning” to get to know the subject in a way more comprehensive manner.
COVID – 19 Outbreak Prediction using Machine Learning | Edureka
This Edureka Session explores and analyses the spread and impact of the novel coronavirus pandemic which has taken the world by storm with its rapid growth.
Case Study: Analysing the Outbreak of COVID 19 using Machine Learning
Problem Statement
We need a strong model that predicts how the virus could spread across different countries and regions. The goal of this task is to build a model that predicts the spread of the virus in the next 7 days.
🔴NOTE: The model was built on a test dataset updated till April,’20. But you can access the source to these datasets at the ‘John Hopkins University Coronavirus Resource Centre’ which gets updated on a daily basis, so you can run this model for the date you prefer.
Tasks to be performed:
- Analysing the present condition in India
- Is this trend similar to Italy/South Korea/ Wuhan
- Exploring the world wide data
- Forecasting the worldwide COVID-19 cases using Prophet
Before we begin with the model, let’s first import the libraries that we need. Consider this a Step 0 if you may.
# importing the required libraries
import pandas as pd
# Visualisation libraries
import matplotlib.pyplot as plt
%matplotlib inline
import seaborn as sns
import plotly.express as px
import plotly.graph_objects as go
import folium
from folium import plugins
# Manipulating the default plot size
plt.rcParams['figure.figsize'] = 10, 12
# Disable warnings
import warnings
warnings.filterwarnings('ignore')Part 1: Analysing the present condition in India
So, how did it actually start in India?
The first COVID-19 case was reported on 30th January 2020 when a student arrived in Kerala, India from Wuhan, China. Just in the next 2 days, Kerela reported 2 more cases. For almost a month, no new cases were reported in India, however, on 2nd March 2020, five new cases of coronavirus were reported in Kerala again and since then the cases have only been rising.

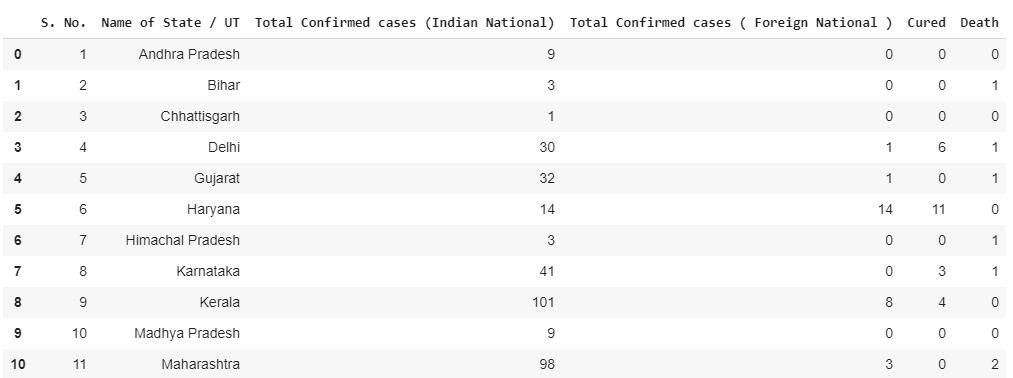

1.1 Reading the Datasets
First, we’re going to start out by reading our datasets by creating a data frame using Pandas.
# Reading the datasets
df= pd.read_excel('/content/Covid cases in India.xlsx')
df_india = df.copy()
df
# Coordinates of India States and Union Territories
India_coord = pd.read_excel('/content/Indian Coordinates.xlsx')
#Day by day data of India, Korea, Italy and Wuhan
dbd_India = pd.read_excel('/content/per_day_cases.xlsx',parse_dates=True, sheet_name='India')
dbd_Italy = pd.read_excel('/content/per_day_cases.xlsx',parse_dates=True, sheet_name="Italy")
dbd_Korea = pd.read_excel('/content/per_day_cases.xlsx',parse_dates=True, sheet_name="Korea")
dbd_Wuhan = pd.read_excel('/content/per_day_cases.xlsx',parse_dates=True, sheet_name="Wuhan")1.2 Analysing COVID19 Cases in India
df.drop(['S. No.'],axis=1,inplace=True)
df['Total cases'] = df['Total Confirmed cases (Indian National)'] + df['Total Confirmed cases ( Foreign National )']
total_cases = df['Total cases'].sum()
print('Total number of confirmed COVID 2019 cases across India till date (22nd March, 2020):', total_cases)df.style.background_gradient(cmap='Reds')

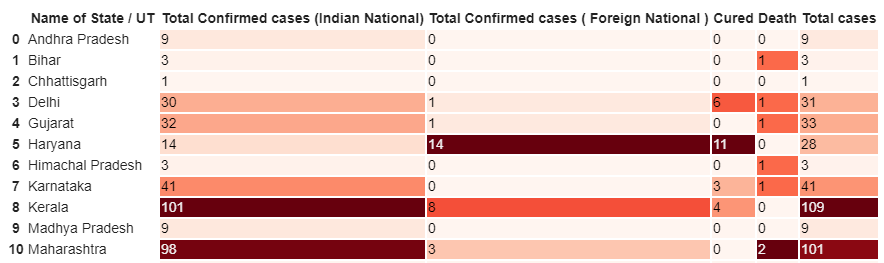

As you might have guessed, the redder the cell the bigger the value. So, the darker cells represent a higher number of affected cases and the lighter ones show otherwise.

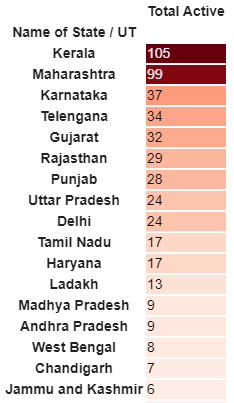

1.3 Number of Active COVID-19 cases in affected State/Union Territories
#Total Active is the Total cases - (Number of death + Cured)
df['Total Active'] = df['Total cases'] - (df['Death'] + df['Cured'])
total_active = df['Total Active'].sum()
print('Total number of active COVID 2019 cases across India:', total_active)
Tot_Cases = df.groupby('Name of State / UT')['Total Active'].sum().sort_values(ascending=False).to_frame()
Tot_Cases.style.background_gradient(cmap='Reds')

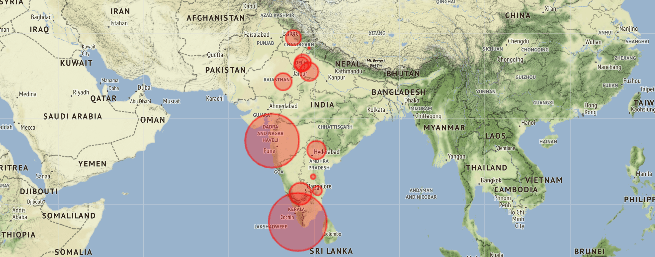

1.4 Visualising the spread geographically
df_full = pd.merge(India_coord,df,on='Name of State / UT')
map = folium.Map(location=[20, 70], zoom_start=4,tiles='Stamenterrain')
for lat, lon, value, name inzip(df_full['Latitude'], df_full['Longitude'], df_full['Total cases'], df_full['Name of State / UT']):
folium.CircleMarker([lat, lon], radius=value*0.8, popup = ('<strong>State</strong>: ' + str(name).capitalize() + '
''<strong>Total Cases</strong>: ' + str(value) + '
'),color='red',fill_color='red',fill_opacity=0.3 ).add_to(map)
map

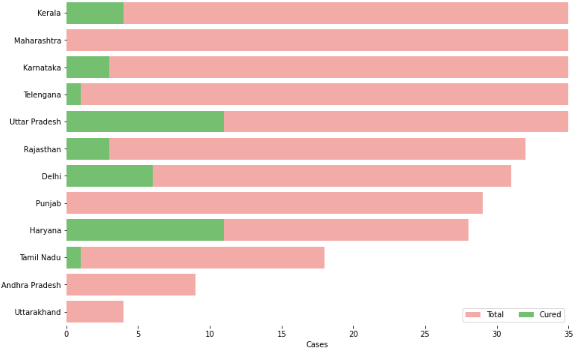

1.5 Confirmed vs Recovered figures
f, ax = plt.subplots(figsize=(12, 8))
data = df_full[['Name of State / UT','Total cases','Cured','Death']]
data.sort_values('Total cases',ascending=False,inplace=True)
sns.set_color_codes("pastel")
sns.barplot(x="Total cases", y="Name of State / UT", data=data,label="Total", color="r")
sns.set_color_codes("muted")
sns.barplot(x="Cured", y="Name of State / UT", data=data, label="Cured", color="g")# Add a legend and informative axis label ax.legend(ncol=2, loc="lower right", frameon=True) ax.set(xlim=(0, 35), ylabel="",xlabel="Cases") sns.despine(left=True, bottom=True)

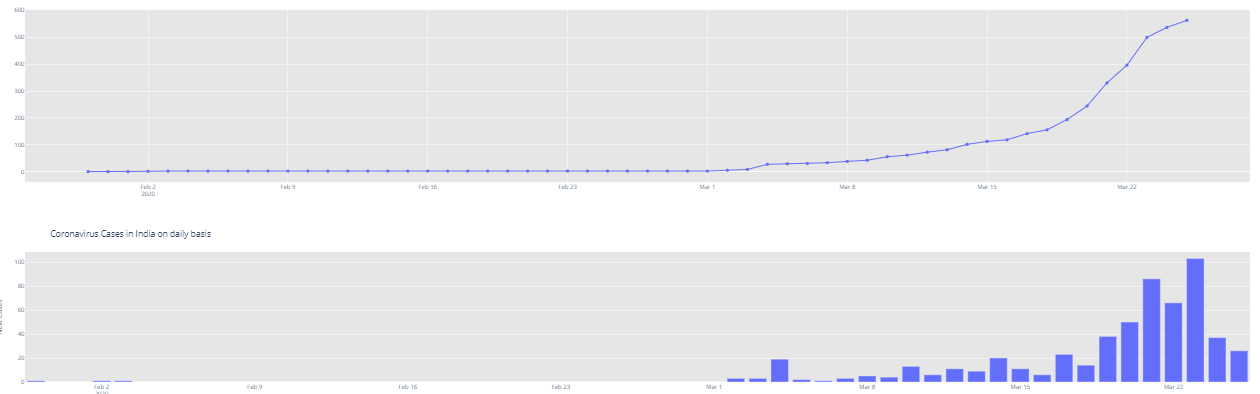

Next, you’re going to use Plotly to obtain graphs depicting the trends of the rise of coronavirus cases across India.
#This cell's code is required when you are working with plotly on colab import plotly plotly.io.renderers.default = 'colab'
# Rise of COVID-19 cases in India fig = go.Figure() fig.add_trace(go.Scatter(x=dbd_India['Date'], y = dbd_India['Total Cases'], mode='lines+markers',name='Total Cases')) fig.update_layout(title_text='Trend of Coronavirus Cases in India (Cumulative cases)',plot_bgcolor='rgb(230, 230, 230)') fig.show()
import plotly.express as px fig = px.bar(dbd_India, x="Date", y="New Cases", barmode='group', height=400) fig.update_layout(title_text='Coronavirus Cases in India on daily basis',plot_bgcolor='rgb(230, 230, 230)') fig.show()
Part 2: Is the trend Similar to Italy, Wuhan & South Korea?
At this point, India had already crossed 500 cases. It still is very important to contain the situation in the coming days. The numbers of coronavirus patients had started doubling after many countries hit the 100 marks, and almost starting increasing exponentially.

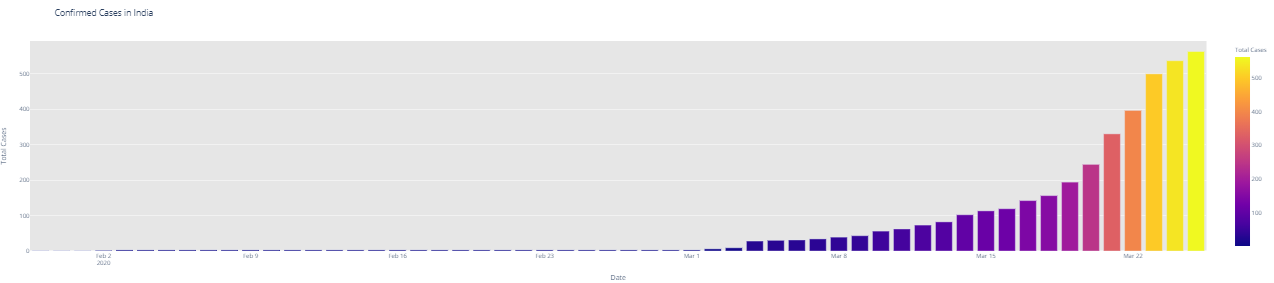

2.1 Cumulative cases in India, Italy, S.Korea, and Wuhan
# import plotly.express as px fig = px.bar(dbd_India, x="Date", y="Total Cases", color='Total Cases', orientation='v', height=600, title='Confirmed Cases in India', color_discrete_sequence = px.colors.cyclical.IceFire) '''Colour Scale for plotly https://plot.ly/python/builtin-colorscales/ ''' fig.update_layout(plot_bgcolor='rgb(230, 230, 230)') fig.show() fig = px.bar(dbd_Italy, x="Date", y="Total Cases", color='Total Cases', orientation='v', height=600, title='Confirmed Cases in Italy', color_discrete_sequence = px.colors.cyclical.IceFire) fig.update_layout(plot_bgcolor='rgb(230, 230, 230)') fig.show() fig = px.bar(dbd_Korea, x="Date", y="Total Cases", color='Total Cases', orientation='v', height=600, title='Confirmed Cases in South Korea', color_discrete_sequence = px.colors.cyclical.IceFire) fig.update_layout(plot_bgcolor='rgb(230, 230, 230)') fig.show() fig = px.bar(dbd_Wuhan, x="Date", y="Total Cases", color='Total Cases', orientation='v', height=600, title='Confirmed Cases in Wuhan', color_discrete_sequence = px.colors.cyclical.IceFire) fig.update_layout(plot_bgcolor='rgb(230, 230, 230)') fig.show()
From the visualization above, one can infer the following:
- Confirmed cases in India is rising exponentially with no fixed pattern (Very less test in India)
- Confirmed cases in Italy is rising exponentially with a certain fixed pattern
- Confirmed cases in S.Korea is rising gradually
- There have been almost a negligible number confirmed cases in Wuhan a week.

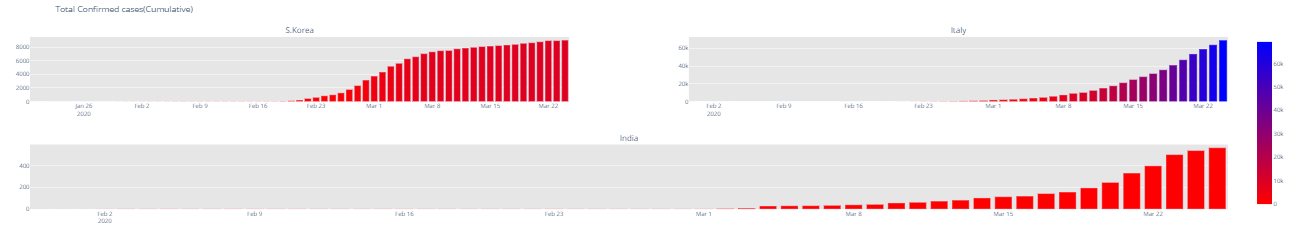

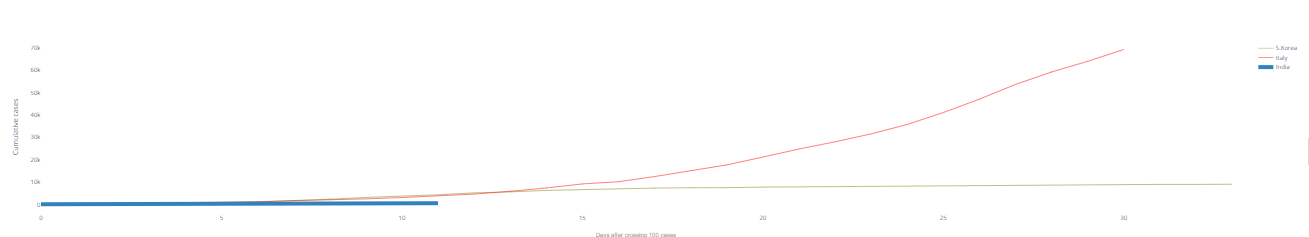

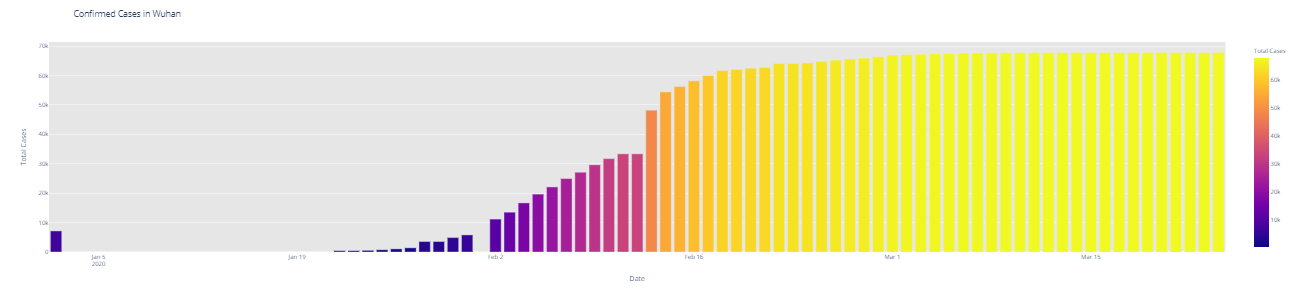

2.2 Comparison between the rise of cases in Wuhan, S.Korea, Italy and India
# import plotly.graph_objects as go
from plotly.subplots import make_subplots
fig = make_subplots(
rows=2, cols=2,
specs=[[{}, {}],
[{"colspan": 2}, None]],
subplot_titles=("S.Korea","Italy", "India","Wuhan"))
fig.add_trace(go.Bar(x=dbd_Korea['Date'], y=dbd_Korea['Total Cases'],
marker=dict(color=dbd_Korea['Total Cases'], coloraxis="coloraxis")),1, 1)
fig.add_trace(go.Bar(x=dbd_Italy['Date'], y=dbd_Italy['Total Cases'],
marker=dict(color=dbd_Italy['Total Cases'], coloraxis="coloraxis")),1, 2)
fig.add_trace(go.Bar(x=dbd_India['Date'], y=dbd_India['Total Cases'],
marker=dict(color=dbd_India['Total Cases'], coloraxis="coloraxis")),2, 1)
# fig.add_trace(go.Bar(x=dbd_Wuhan['Date'], y=dbd_Wuhan['Total Cases'],
# marker=dict(color=dbd_Wuhan['Total Cases'], coloraxis="coloraxis")),2, 2)
fig.update_layout(coloraxis=dict(colorscale='Bluered_r'), showlegend=False,title_text="Total Confirmed cases(Cumulative)")
fig.update_layout(plot_bgcolor='rgb(230, 230, 230)')
fig.show()
# import plotly.graph_objects as go title = 'Main Source for News' labels = ['S.Korea', 'Italy', 'India'] colors = ['rgb(122,128,0)', 'rgb(255,0,0)', 'rgb(49,130,189)'] mode_size = [10, 10, 12] line_size = [1, 1, 8] fig = go.Figure() fig.add_trace(go.Scatter(x=dbd_Korea['Days after surpassing 100 cases'], y=dbd_Korea['Total Cases'],mode='lines', name=labels[0], line=dict(color=colors[0], width=line_size[0]), connectgaps=True)) fig.add_trace(go.Scatter(x=dbd_Italy['Days after surpassing 100 cases'], y=dbd_Italy['Total Cases'],mode='lines', name=labels[1], line=dict(color=colors[1], width=line_size[1]), connectgaps=True)) fig.add_trace(go.Scatter(x=dbd_India['Days after surpassing 100 cases'], y=dbd_India['Total Cases'],mode='lines', name=labels[2], line=dict(color=colors[2], width=line_size[2]), connectgaps=True)) annotations = [] annotations.append(dict(xref='paper', yref='paper', x=0.5, y=-0.1, xanchor='center', yanchor='top', text='Days after crossing 100 cases ', font=dict(family='Arial', size=12, color='rgb(150,150,150)'), showarrow=False)) fig.update_layout(annotations=annotations,plot_bgcolor='white',yaxis_title='Cumulative cases') fig.show()
Part 3: Exploring Worldwide Data
df = pd.read_csv('/content/covid_19_clean_complete.csv',parse_dates=['Date'])
df.rename(columns={'ObservationDate':'Date', 'Country/Region':'Country'}, inplace=True)
df_confirmed = pd.read_csv("/content/time_series_covid19_confirmed_global.csv")
df_recovered = pd.read_csv("/content/time_series_covid19_recovered_global.csv")
df_deaths = pd.read_csv("/content/time_series_covid19_deaths_global.csv")
df_confirmed.rename(columns={'Country/Region':'Country'}, inplace=True)
df_recovered.rename(columns={'Country/Region':'Country'}, inplace=True)
df_deaths.rename(columns={'Country/Region':'Country'}, inplace=True)
df_deaths.head()df2 = df.groupby(["Date", "Country", "Province/State"])[['Date', 'Province/State', 'Country', 'Confirmed', 'Deaths', 'Recovered']].sum().reset_index() df2.head()
#Overall worldwide Confirmed/ Deaths/ Recovered cases

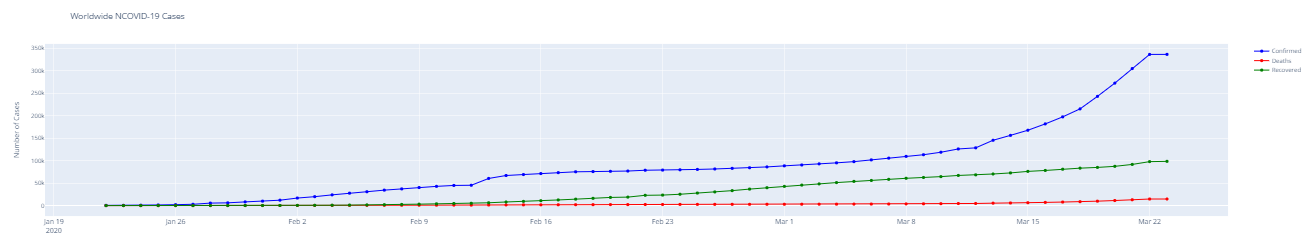

df.groupby('Date').sum().head()Visualizing: Worldwide COVID-19 cases
confirmed = df.groupby('Date').sum()['Confirmed'].reset_index()
deaths = df.groupby('Date').sum()['Deaths'].reset_index()
recovered = df.groupby('Date').sum()['Recovered'].reset_index()fig = go.Figure() #Plotting datewise confirmed cases fig.add_trace(go.Scatter(x=confirmed['Date'], y=confirmed['Confirmed'], mode='lines+markers', name='Confirmed',line=dict(color='blue', width=2))) fig.add_trace(go.Scatter(x=deaths['Date'], y=deaths['Deaths'], mode='lines+markers', name='Deaths', line=dict(color='Red', width=2))) fig.add_trace(go.Scatter(x=recovered['Date'], y=recovered['Recovered'], mode='lines+markers', name='Recovered', line=dict(color='Green', width=2))) fig.update_layout(title='Worldwide NCOVID-19 Cases', xaxis_tickfont_size=14,yaxis=dict(title='Number of Cases')) fig.show()
Part 4: Forecasting Total Number of Cases Worldwide
In this segment, we’re going to generate a week ahead forecast of confirmed cases of COVID-19 using Prophet, with specific prediction intervals by creating a base model both with and without tweaking of seasonality-related parameters and additional regressors.
What is Prophet?
Prophet is open source software released by Facebook’s Core Data Science team. It is available for download on CRAN and PyPI.
We use Prophet, a procedure for forecasting time series data based on an additive model where non-linear trends are fit with yearly, weekly, and daily seasonality, plus holiday effects. It works best with time series that have strong seasonal effects and several seasons of historical data. Prophet is robust to missing data and shifts in the trend, and typically handles outliers well.
Why Prophet?
Accurate and fast: Prophet is used in many applications across Facebook for producing reliable forecasts for planning and goal setting. Facebook finds it to perform better than any other approach in the majority of cases. It fit models in Stan, so that you get forecasts in just a few seconds.
Fully automatic: Get a reasonable forecast on messy data with no manual effort. Prophet is robust to outliers, missing data, and dramatic changes in your time series.
Tunable forecasts: The Prophet procedure includes many possibilities for users to tweak and adjust forecasts. You can use human-interpretable parameters to improve your forecast by adding your domain knowledge
Available in R or Python: Facebook has implemented the Prophet procedure in R and Python. Both of them share the same underlying Stan code for fitting. You can use whatever language you’re comfortable with to get forecasts.
from fbprophet import Prophet
confirmed = df.groupby('Date').sum()['Confirmed'].reset_index()
deaths = df.groupby('Date').sum()['Deaths'].reset_index()
recovered = df.groupby('Date').sum()['Recovered'].reset_index()confirmed.columns = ['ds','y'] #confirmed['ds'] = confirmed['ds'].dt.date confirmed['ds'] = pd.to_datetime(confirmed['ds']) confirmed.tail()

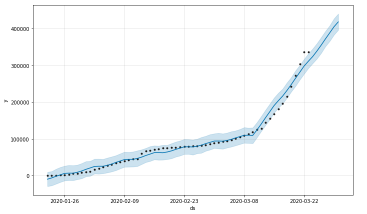

Generating a week ahead forecast of confirmed cases of COVID-19 using Prophet, with a 95% prediction interval by creating a base model with no tweaking of seasonality-related parameters and additional regressors.
m = Prophet(interval_width=0.95) m.fit(confirmed) future = m.make_future_dataframe(periods=7) future.tail()
#predicting the future with date, and upper and lower limit of y value forecast = m.predict(future) forecast[['ds', 'yhat', 'yhat_lower', 'yhat_upper']].tail()

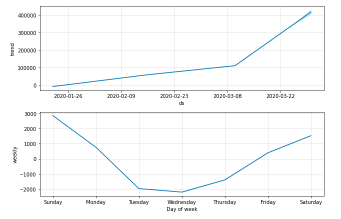

You can plot the forecast by calling the Prophet.plot method and passing in your forecast data frame.
confirmed_forecast_plot =m.plot_components(forecast)

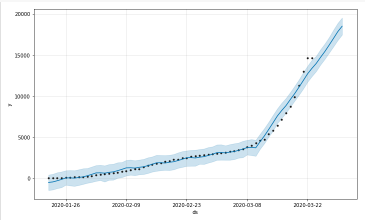

Generating a week ahead forecast of confirmed cases of COVID-19 using the Machine Learning library – Prophet, with 95% prediction interval by creating a base model with no tweaking of seasonality-related parameters and additional regressors.
deaths.columns = ['ds','y'] deaths['ds'] = pd.to_datetime(deaths['ds']) m = Prophet(interval_width=0.95) m.fit(deaths) future = m.make_future_dataframe(periods=7) future.tail()
forecast = m.predict(future) forecast[['ds', 'yhat', 'yhat_lower', 'yhat_upper']].tail()
deaths_forecast_plot = m.plot(forecast)

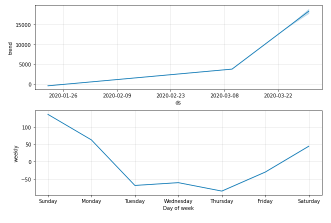

deaths_forecast_plot = m.plot_components(forecast)
Generating a week ahead forecast of confirmed cases of COVID-19 using Prophet, with 95% prediction interval by creating a base model with no tweaking of seasonality-related parameters and additional regressors.
recovered.columns = ['ds','y'] recovered['ds'] = pd.to_datetime(recovered['ds']) m = Prophet(interval_width=0.95) m.fit(recovered) future = m.make_future_dataframe(periods=7) future.tail() forecast = m.predict(future) forecast[['ds', 'yhat', 'yhat_lower', 'yhat_upper']].tail() recovered_forecast_plot = m.plot(forecast)
recovered_forecast_plot = m.plot_components(forecast)
